Nylon casing CT with a 51 × 30 mm rectangular window for busbar installations.
Made to your specification
Window size, ratio, burden and accuracy class can be changed to suit the busbar and the connected instrument.

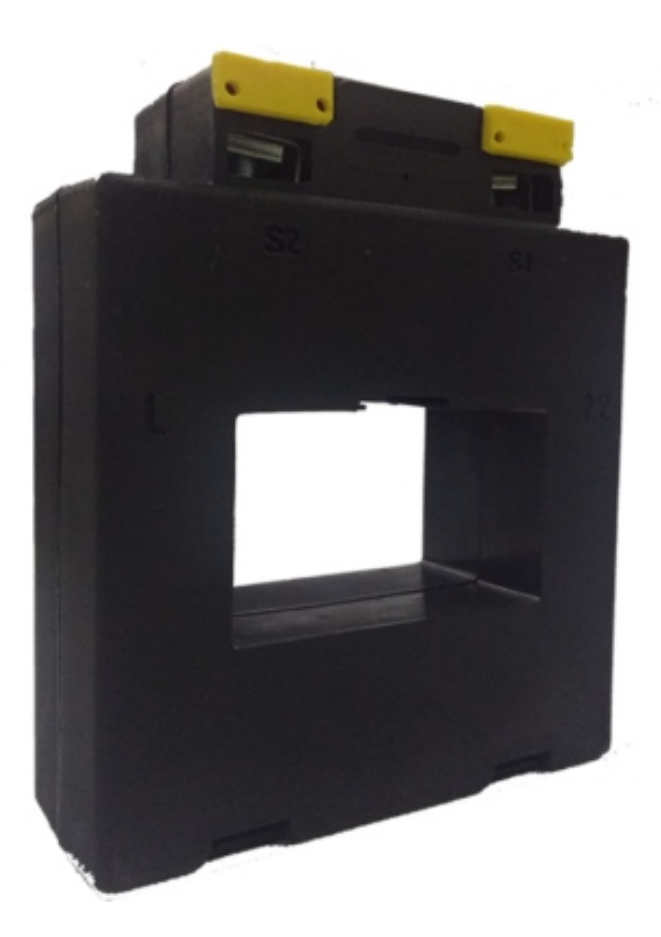

SA5030 is an Nylon casing current transformer with a 51 × 30 mm rectangular window, sized to pass a standard busbar section without additional support.
Encapsulation seals the winding against moisture and dust and adds mechanical strength, which makes the unit tolerant of the vibration found in switchgear. The rating plate carries the ratio, burden, accuracy class and polarity marking.
| Product Code | SA5030 |
|---|---|
| Primary Current | 200A – 1000A |
| Secondary Current | 5A |
| Accuracy Class | Class 0.5 / Class 1.0 |
| Burden | 5 - 15 VA |
| Frequency | 50 / 60 Hz |
| Insulation | 720 V, Class B |
| Inner Diameter | 51 × 30 mm window |
| Mounting Type | Busbar mounted with base fixing |
| Application | Switchgear metering and monitoring |
Values shown are for the standard build. Ratio, burden, accuracy class and aperture can be changed to order.
Request a quote
The product is preselected below. Add the ratio, burden and quantity you need and you will get a quotation with a firm lead time.
