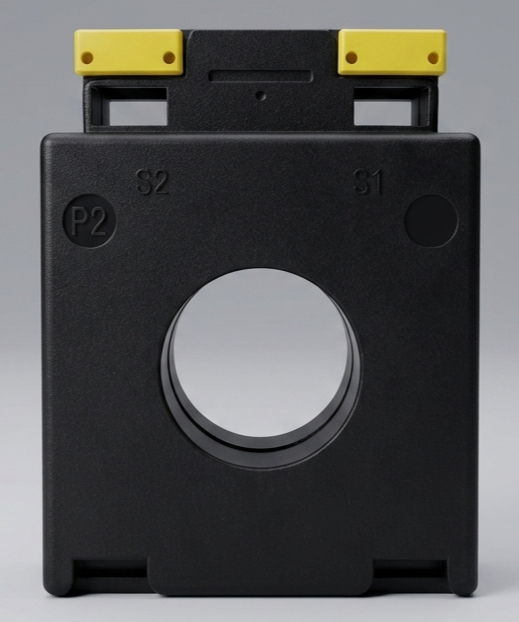

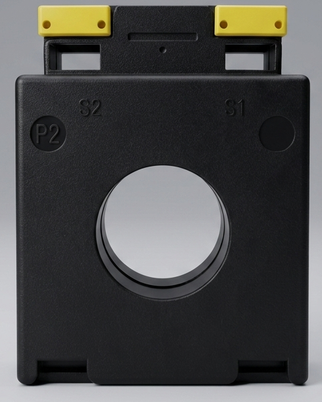

Compact nylon cased ring CT with a 20 mm aperture, sized for retrofit into existing metering panels.
| Product Code | SA3RH20 |
|---|---|
| Primary Current | 30A ,40A ,50A,60A, 80A, 100A |
| Secondary Current | 5A & 1A |
| Accuracy Class | Class 1.0 |
| Burden | 1, 1.25 ,2.5,3.75,5 |
| Frequency | 50Hz |
| Inner Diameter | 20MM |
| Outer Diameter | 40MM |
| Mounting Type | BASE MOUNTING |
| Application |
|
Values shown are for the standard build. Ratio, burden, accuracy class and aperture can be changed to order.
Request a quote
The product is preselected below. Add the ratio, burden and quantity you need and you will get a quotation with a firm lead time.
