Tape wound toroidal CT supplied with flying leads, built around your mechanical envelope.
Made to your specification
Aperture, overall height and lead length are all made to order. Send a sketch of the space available and the required ratio.
SA3W is a tape wound toroidal current transformer supplied without a moulded housing, which keeps the outside dimensions to a minimum. It suits retrofits and OEM assemblies where the transformer has to fit an envelope that already exists.
The core is wound and taped, then finished with insulated flying leads so it can be terminated wherever the assembly requires. Core size, turns ratio and lead length are all set at manufacture.
| Product Code | SA3WS |
|---|---|
| Primary Current | 100A – 1000A |
| Secondary Current | 5A or 1A |
| Accuracy Class | Class 1.0 |
| Burden | 1.0 – 5.0 VA |
| Inner Diameter | 25 mm and above |
| Frequency | 50 / 60 Hz |
| Insulation | 660 V, Class E |
| Mounting Type | Free standing toroid |
| Application | OEM assemblies and retrofit installations |
Values shown are for the standard build. Ratio, burden, accuracy class and aperture can be changed to order.
Request a quote
The product is preselected below. Add the ratio, burden and quantity you need and you will get a quotation with a firm lead time.
Related products

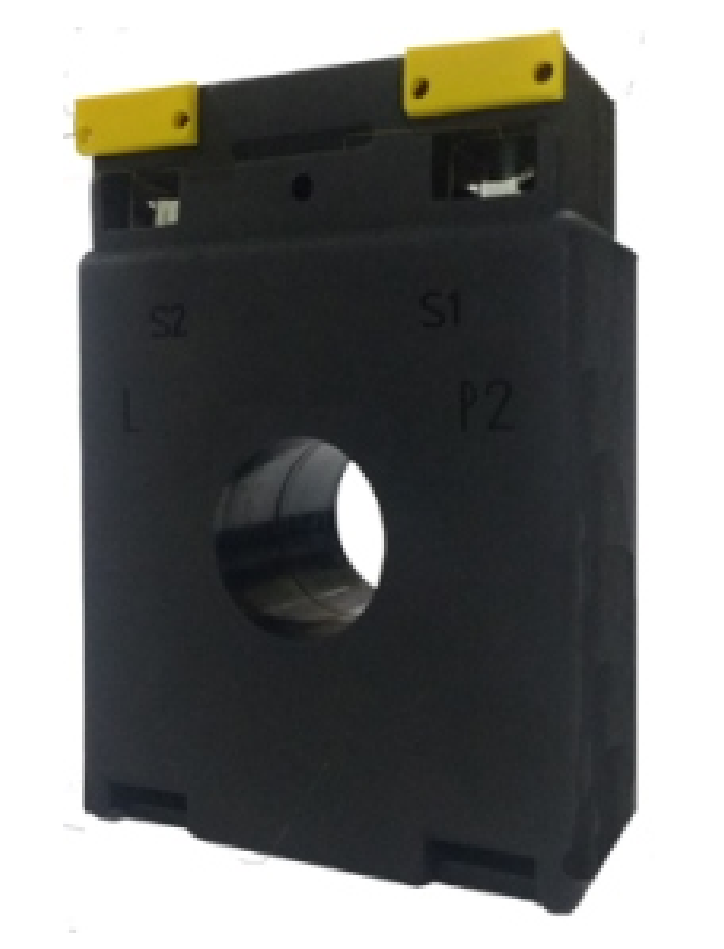

Compact nylon cased ring CT with a 20 mm aperture, sized for retrofit into existing metering panels.
Compact nylon cased ring CT with a 20 mm aperture, sized for retrofit into existing metering panels.

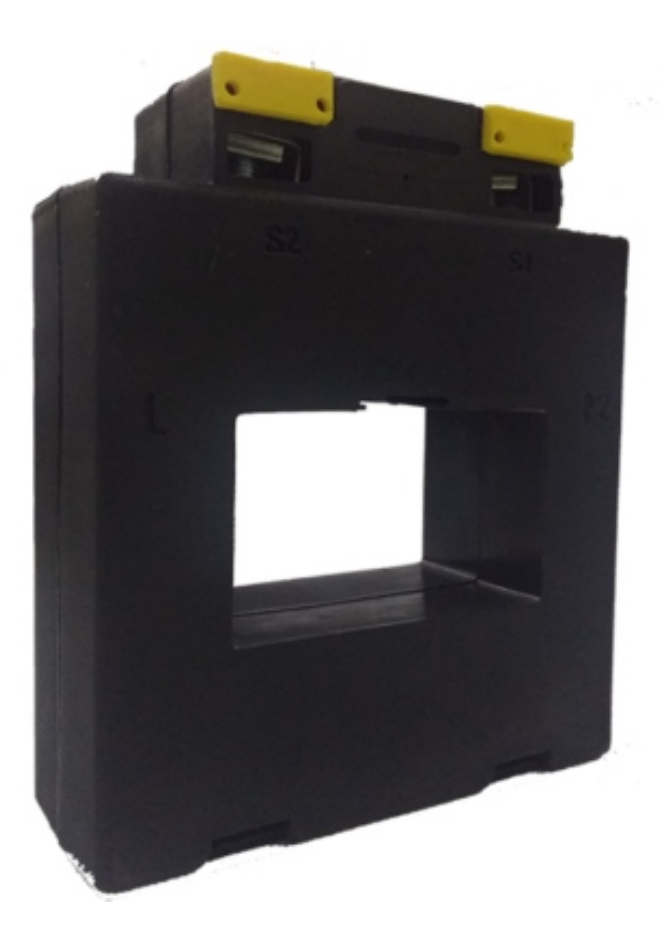

Resin cast CT with a 50 × 30 mm rectangular window for busbar installations.
